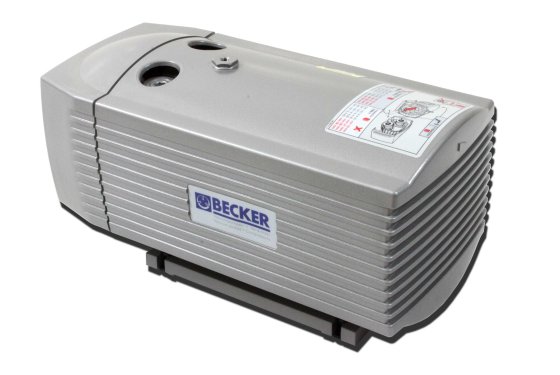

Rotary vane vacuum pumps operate on the well proven rotary vane principle without using foreign substances for lubrication.
Pumping is done pulsation free and completely oil-free and an efficient fan ensures removal of heat tram from the motor and pump cover.
The advantages of the vacuum generator are:
-
Oil-free
Completely dry pumping. Operates on rotary vane principle and uses self-lubricating carbon vanes. -
Reliable
Proven design. High quality materials and quality standard. -
Maintenance free
Fan cooled motor. Sealed tor life bearings. - Economical
Low energy requirements.Can be used as a vacuum pump or compressor. -
Environmentally safe
Oil-free pumping. Low noise level. -
Compact
Direct-drive construction. Rotor is taperbore mounted to motor shaft.
These dry running vacuum pumps have been manufactured according to the latest technical standards and safety regulations. If not installed properly or not used as directed, dangerous situations or damage might occur.These vacuum pumps are designed for use in the fields of coarse vacuum. They can be used to suck off or haul air or dry gases, which are not aggressive, poisonous or explosive. Other medium agents must not be transported.
New: inclu. Switching Device for comfortable control over your vacuum pump!Development of noise and heat at the control area of the CNC-Unit location
is always bothersome. Basically its thought best to position the vacuum pump as
far as possible, from the control area. This is very easy to accomplish when using
the switching device and since our vacuum pumps( have a performance of up to 1.3kw) are
already equipped with the switching device as standard.
Just install the switching device at the control area( either standing it upwards, or using
two screws to screw it tightly to a suitable subsurface) and securely lay the lines and
hoses toward the vacuum pump. At this part in time it should be verified that nothing is
left in the way to stumble on and that there be suficient space between parts in the whole
area. The standard issued cable length amounts up to 4m.
Now the switching device can be plugged into a regular outlet and the device is then
automatically operational .
Technical details:
- Nominal displacement/volume flow 50Hz m3/h -> 16
- Ultimate Pressure hPa (mbar) -> 150
- Nominal motor rating 50Hz kW -> 0,55
- Nominal motor speed 50Hz min-1 -> 1360
- Noise level (DIN 45635)* 50Hz dB(A) -> 61
- Weight approx. kg -> 22.5
*)Sound level (DIN 45635)
